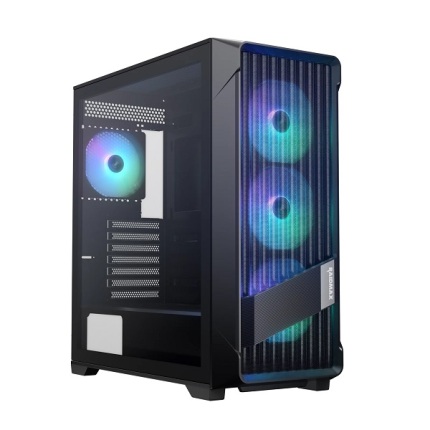

RAIDMAX X603 NANO BLACK
15 900 DA
Rupture de stock
Description
X603 Nano fusing elegant design and airflow engineering, this PC chassis features wavy massive large mesh for superb ventilation and comes with a white logo printed on aluminum metal at the front panel. It offers not only an attravie appearance but also high-performance compatibility in this era.
LIGHTING EFFECTS
Preinstalled ARGB 120mm Fans x 4pcs at the front and at the rear which could be operated by the lighting switch button on the I/O panel or motherboard software.
Tempered Glass Sliding Side Panel
X603 Nano is designed with a slide side path panel with 4mm thickness tempered glass to let you easily remove and assemble it.
EASY MAINTENANCE
X603 Nano is equipped with a rubber logo tab at the magnetic dust filters on the top of case. It looks sleeker and would be simply, easy, and convenient maintenance.
I/O PORT
01
Fan LED Switch 02
USB3.0 03
USB2.0 04
HD Audio 05
Reset 06
Power
COMPATIBILITY &CLEARANCES
SPECIFICATIONS
PRODUCT NAME
X603 Nano
X603NTBF (Black)
DIMENSIONS (mm)
390(L) x 200(W) x 445(H)
MOTHERBOARD SUPPORT
ATX / Micro-ATX / Mini-ITX
EXPANSION SLOTS 7
MATERIALS
Plastic, Steel, Tempered Glass
3.5″HDD 2
USB3.0 x 1, USD2.0 x 2, HD Audio, Power, Reset, Fan LED Button
120mm x 3 / 140mm x 2
PREINSTALLED FAN(s)
ARGB LED Fan 120mm x 3 (front ) / ARGB LED Fan 120mm x 1 (rear)
RADIATOR Support
Front: 360mm / Top: 280mm / Rear: 120m
MAX.GPU LENGTH 320mm
Steel
PSU SUPPORT
Standard PS2 / ATX PSU ( Bottom Mounted)
FAN Support
Front: 120mm x 3
Top: 120mm x 2 / 140mm x 2
Rear: 120mm x 1
PSU Chamber: 120mm x 2
AIRFLOW DIAGRAM
